SA87減速機重量：SA87減速機重量99公斤，SA87減速機與電機重量分別如下

SA87減速機與0.75KW電機重量115公斤，SA87減速機與1.1KW電機重量119公斤，SA87減速機與1.5KW電機重量122公斤，SA87減速機與2.2KW電機重量131公斤，SA87減速機與3KW電機重量134公斤，SA87減速機與4KW電機重量145公斤，SA87減速機與5.5KW電機重量159公斤，SA87減速機與7.5KW電機重量172公斤，SA87減速機與11KW電機重量214公斤，SA87減速機與15KW電機重量234公斤。

SA87減速機加油量：可加齒輪油自鎖減速機

SA87減速機M3方式安裝加7.1-10.1L，SA87減速機M2方式安裝加8L，SA87減速機M1方式安裝加3.8L，SA87減速機M4方式安裝加12L，SA87減速機M5方式安裝加9.1L，SA87減速機M6方式安裝加9.1L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

SA87減速機實物圖：圖一為SA87臥式中孔軸斜齒輪蝸輪蝸桿減速電機，圖二S87與自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF87具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SAF87立式通孔斜齒輪減速機。

SA87減速機型號表示方法：

SA87減速機型號結構SA87-B7.5KW-4P-減速比-方式安裝-接線盒位置。

SA87減速機性能參數表結構說明：K代表服務系數，T扭力臂，E編碼器，Frame size代表基座規格，HF手動釋放裝置與自鎖功能，TF電機熱保護裝置，SA87，S87，SF87，SAF87減速機機座號，HR手動釋放裝置，N代表徑向負荷，1，min代表輸出轉數。

SA87減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SA87減速機參數：

SA87減速機減速比288比，258.18比，222.4比，202.96比，180比，151.3比，139.05比，123.48比，110.4比，99.26比，91.2比，86.15比，81.76比，77.14比，70.43比，64.27比，64比，57比，47.91比，44.03比，39.1比，34.96比，31.43比，27.28比，25.5比，24.43比，21.43比，20.27比，19.7比，17.49比，15.64比，14.06比，12.21比，10.93比，9.07比，7.88比

SA87減速機輸出轉數4.9轉，5.4轉，6.3轉，6.9轉，7.8轉，9.3轉，10轉，11轉，14轉，15轉，16轉，17轉，18轉，20轉，22轉，25轉，29轉，32轉，36轉，40轉，45轉，51轉，55轉，57轉，65轉，69轉，71轉，80轉，90轉，100轉，115轉，128轉，154轉，178轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SA87減速機電機可與三相，直流，變頻，剎車，防爆，伺服，交流，單相電機SA87與0.75KW，SA87與1.1KW，SA87與1.5KW，SA87與2.2KW，SA87與3KW，SA87與4KW，SA87與5.5KW，SA87與7.5KW，SA87與11KW，SA87與15KW。

SA87減速機輸出扭矩2280N.m，2260N.m，2210N.m，2150N.m，2100N.m，2060N.m，2000N.m，1960N.m，1510N.m，1880N.m，1600N.m，1820N.m，1700N.m，1240N.m，1140N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

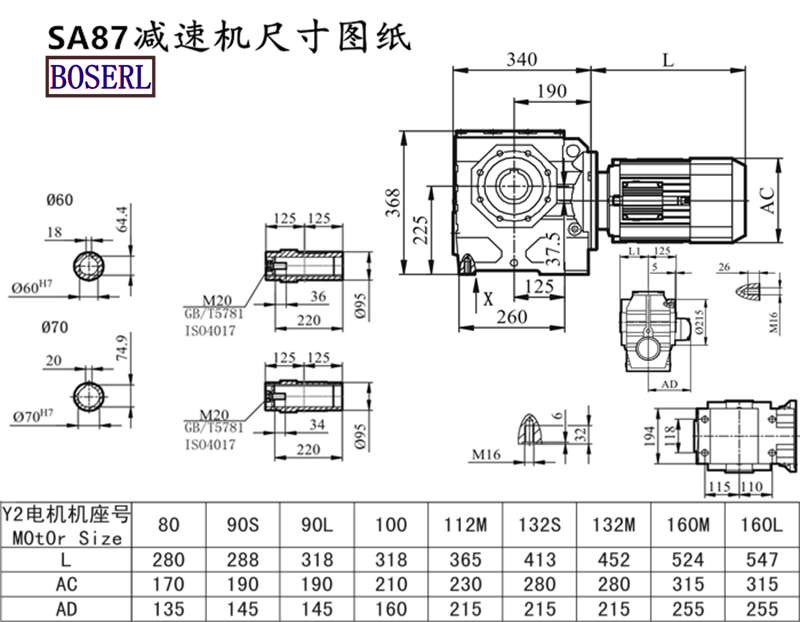

SA87減速機安裝尺寸：高368*寬250*長340

SA87減速機型號：SA87AQA80,SA87AQA100,SA87AQA115,SA87AQA140,SA87AQA160,SA87AQA190,SA87AQH80,SA87AQH100,SA87AQH115,SA87AQH140,SA87AQH160,SA87AQH190,JRTSA87-Y0.55KW,JRTSA87-Y0.75KW,JRTSA87-Y1.1KW,JRTSA87-Y1.5KW,JRTSA87-Y100M4,JRTSA87-Y112M4,JRTSA87-Y11KW,JRTSA87-Y132M4,JRTSA87-Y15KW,JRTSA87-Y160M4,JRTSA87-Y2.2KW,JRTSA87-Y3KW,JRTSA87-Y4KW,JRTSA87-Y5.5KW,JRTSA87-Y7.5KW,JRTSA87-Y71M4,JRTSA87-Y80M4,JRTSA87-Y90M4,JRTSA87-YEJ100M4,JRTSA87-YEJ112M4,JRTSA87-YEJ132M4,JRTSA87-YEJ160M4,JRTSA87-YEJ71M4,JRTSA87-YEJ80M4,JRTSA87-YEJ90M4,JRTSA87-YS100M4,JRTSA87-YS112M4,JRTSA87-YS132M4,JRTSA87-YS160M4,JRTSA87-YS71M4,JRTSA87-YS80M4,JRTSA87-YS90M4,JRTSA87-YVP100M4,JRTSA87-YVP112M4,JRTSA87-YVP132M4,JRTSA87-YVP160M4,JRTSA87-YVP71M4,JRTSA87-YVP80M4,JRTSA87-YVP90M4,JRTSA87-YVPEJ100M4,JRTSA87-YVPEJ112M4,JRTSA87-YVPEJ132M4,JRTSA87-YVPEJ160M4,JRTSA87-YVPEJ71M4,JRTSA87-YVPEJ80M4,JRTSA87-YVPEJ90M4,EWSA87-Y0.55KW,EWSA87-Y0.75KW,EWSA87-Y1.1KW,EWSA87-Y1.5KW,EWSA87-Y100M4,EWSA87-Y112M4,EWSA87-Y11KW,EWSA87-Y132M4,EWSA87-Y15KW,EWSA87-Y160M4,EWSA87-Y2.2KW,EWSA87-Y3KW,EWSA87-Y4KW,EWSA87-Y5.5KW,EWSA87-Y7.5KW,EWSA87-Y71M4,EWSA87-Y80M4,EWSA87-Y90M4,EWSA87-YEJ100M4,EWSA87-YEJ112M4,EWSA87-YEJ132M4,EWSA87-YEJ160M4,EWSA87-YEJ71M4,EWSA87-YEJ80M4,EWSA87-YEJ90M4,EWSA87-YS100M4,EWSA87-YS112M4,EWSA87-YS132M4,EWSA87-YS160M4,EWSA87-YS71M4,EWSA87-YS80M4,EWSA87-YS90M4,EWSA87-YVP100M4,EWSA87-YVP112M4,EWSA87-YVP132M4,EWSA87-YVP160M4,EWSA87-YVP71M4,EWSA87-YVP80M4,EWSA87-YVP90M4,EWSA87-YVPEJ100M4,EWSA87-YVPEJ112M4,EWSA87-YVPEJ132M4,EWSA87-YVPEJ160M4,EWSA87-YVPEJ71M4,EWSA87-YVPEJ80M4,EWSA87-YVPEJ90M4,SLSA87-Y0.55KW,SLSA87-Y0.75KW,SLSA87-Y1.1KW,SLSA87-Y1.5KW,SLSA87-Y100M4,SLSA87-Y112M4,SLSA87-Y11KW,SLSA87-Y132M4,SLSA87-Y15KW,SLSA87-Y160M4,SLSA87-Y2.2KW,SLSA87-Y3KW,SLSA87-Y4KW,SLSA87-Y5.5KW,SLSA87-Y7.5KW,SLSA87-Y71M4,SLSA87-Y80M4,SLSA87-Y90M4,SLSA87-YEJ100M4,SLSA87-YEJ112M4,SLSA87-YEJ132M4,SLSA87-YEJ160M4,SLSA87-YEJ71M4,SLSA87-YEJ80M4,SLSA87-YEJ90M4,SLSA87-YS100M4,SLSA87-YS112M4,SLSA87-YS132M4,SLSA87-YS160M4,SLSA87-YS71M4,SLSA87-YS80M4,SLSA87-YS90M4,SLSA87-YVP100M4,SLSA87-YVP112M4,SLSA87-YVP132M4,SLSA87-YVP160M4,SLSA87-YVP71M4,SLSA87-YVP80M4,SLSA87-YVP90M4,SLSA87-YVPEJ100M4,SLSA87-YVPEJ112M4,SLSA87-YVPEJ132M4,SLSA87-YVPEJ160M4,SLSA87-YVPEJ71M4,SLSA87-YVPEJ80M4,SLSA87-YVPEJ90M4,DSZSA87-Y0.55KW,DSZSA87-Y0.75KW,DSZSA87-Y1.1KW,DSZSA87-Y1.5KW,DSZSA87-Y100M4,DSZSA87-Y112M4,DSZSA87-Y11KW,DSZSA87-Y132M4,DSZSA87-Y15KW,DSZSA87-Y160M4,DSZSA87-Y2.2KW,DSZSA87-Y3KW,DSZSA87-Y4KW,DSZSA87-Y5.5KW,DSZSA87-Y7.5KW,DSZSA87-Y71M4,DSZSA87-Y80M4,DSZSA87-Y90M4,DSZSA87-YEJ100M4,DSZSA87-YEJ112M4,DSZSA87-YEJ132M4,DSZSA87-YEJ160M4,DSZSA87-YEJ71M4,DSZSA87-YEJ80M4,DSZSA87-YEJ90M4,DSZSA87-YS100M4,DSZSA87-YS112M4,DSZSA87-YS132M4,DSZSA87-YS160M4,DSZSA87-YS71M4,DSZSA87-YS80M4,DSZSA87-YS90M4,DSZSA87-YVP100M4,DSZSA87-YVP112M4,DSZSA87-YVP132M4,DSZSA87-YVP160M4,DSZSA87-YVP71M4,DSZSA87-YVP80M4,DSZSA87-YVP90M4,DSZSA87-YVPEJ100M4,DSZSA87-YVPEJ112M4,DSZSA87-YVPEJ132M4,DSZSA87-YVPEJ160M4,DSZSA87-YVPEJ71M4,DSZSA87-YVPEJ80M4,DSZSA87-YVPEJ90M4,BSA87-Y0.55KW,BSA87-Y0.75KW,BSA87-Y1.1KW,BSA87-Y1.5KW,BSA87-Y100M4,BSA87-Y112M4,BSA87-Y11KW,BSA87-Y132M4,BSA87-Y15KW,BSA87-Y160M4,BSA87-Y2.2KW,BSA87-Y3KW,BSA87-Y4KW,BSA87-Y5.5KW,BSA87-Y7.5KW,BSA87-Y71M4,BSA87-Y80M4,BSA87-Y90M4,BSA87-YEJ100M4,BSA87-YEJ112M4,BSA87-YEJ132M4,BSA87-YEJ160M4,BSA87-YEJ71M4,BSA87-YEJ80M4,BSA87-YEJ90M4,BSA87-YS100M4,BSA87-YS112M4,BSA87-YS132M4,BSA87-YS160M4,BSA87-YS71M4,BSA87-YS80M4,BSA87-YS90M4,BSA87-YVP100M4,BSA87-YVP112M4,BSA87-YVP132M4,BSA87-YVP160M4,BSA87-YVP71M4,BSA87-YVP80M4,BSA87-YVP90M4,BSA87-YVPEJ100M4,BSA87-YVPEJ112M4,BSA87-YVPEJ132M4,BSA87-YVPEJ160M4,BSA87-YVPEJ71M4,BSA87-YVPEJ80M4,BSA87-YVPEJ90M4,GSA87-Y0.55KW,GSA87-Y0.75KW,GSA87-Y1.1KW,GSA87-Y1.5KW,GSA87-Y100M4,GSA87-Y112M4,GSA87-Y11KW,GSA87-Y132M4,GSA87-Y15KW,GSA87-Y160M4,GSA87-Y2.2KW,GSA87-Y3KW,GSA87-Y4KW,GSA87-Y5.5KW,GSA87-Y7.5KW,GSA87-Y71M4,GSA87-Y80M4,GSA87-Y90M4,GSA87-YEJ100M4,GSA87-YEJ112M4,GSA87-YEJ132M4,GSA87-YEJ160M4,GSA87-YEJ71M4,GSA87-YEJ80M4,GSA87-YEJ90M4,GSA87-YS100M4,GSA87-YS112M4,GSA87-YS132M4,GSA87-YS160M4,GSA87-YS71M4,GSA87-YS80M4,GSA87-YS90M4,GSA87-YVP100M4,GSA87-YVP112M4,GSA87-YVP132M4,GSA87-YVP160M4,GSA87-YVP71M4,GSA87-YVP80M4,GSA87-YVP90M4,GSA87-YVPEJ100M4,GSA87-YVPEJ112M4,GSA87-YVPEJ132M4,GSA87-YVPEJ160M4,GSA87-YVPEJ71M4,GSA87-YVPEJ80M4,GSA87-YVPEJ90M4,SCA87-Y0.55KW,SCA87-Y0.75KW,SCA87-Y1.1KW,SCA87-Y1.5KW,SCA87-Y100M4,SCA87-Y112M4,SCA87-Y11KW,SCA87-Y132M4,SCA87-Y15KW,SCA87-Y160M4,SCA87-Y2.2KW,SCA87-Y3KW,SCA87-Y4KW,SCA87-Y5.5KW,SCA87-Y7.5KW,SCA87-Y71M4,SCA87-Y80M4,SCA87-Y90M4,SCA87-YEJ100M4,SCA87-YEJ112M4,SCA87-YEJ132M4,SCA87-YEJ160M4,SCA87-YEJ71M4,SCA87-YEJ80M4,SCA87-YEJ90M4,SCA87-YS100M4,SCA87-YS112M4,SCA87-YS132M4,SCA87-YS160M4,SCA87-YS71M4,SCA87-YS80M4,SCA87-YS90M4,SCA87-YVP100M4,SCA87-YVP112M4,SCA87-YVP132M4,SCA87-YVP160M4,SCA87-YVP71M4,SCA87-YVP80M4,SCA87-YVP90M4,SCA87-YVPEJ100M4,SCA87-YVPEJ112M4,SCA87-YVPEJ132M4,SCA87-YVPEJ160M4,SCA87-YVPEJ71M4,SCA87-YVPEJ80M4,SCA87-YVPEJ90M4,MTNA87-Y0.55KW,MTNA87-Y0.75KW,MTNA87-Y1.1KW,MTNA87-Y1.5KW,MTNA87-Y100M4,MTNA87-Y112M4,MTNA87-Y11KW,MTNA87-Y132M4,MTNA87-Y15KW,MTNA87-Y160M4,MTNA87-Y2.2KW,MTNA87-Y3KW,MTNA87-Y4KW,MTNA87-Y5.5KW,MTNA87-Y7.5KW,MTNA87-Y71M4,MTNA87-Y80M4,MTNA87-Y90M4,MTNA87-YEJ100M4,MTNA87-YEJ112M4,MTNA87-YEJ132M4,MTNA87-YEJ160M4,MTNA87-YEJ71M4,MTNA87-YEJ80M4,MTNA87-YEJ90M4,MTNA87-YS100M4,MTNA87-YS112M4,MTNA87-YS132M4,MTNA87-YS160M4,MTNA87-YS71M4,MTNA87-YS80M4,MTNA87-YS90M4,MTNA87-YVP100M4,MTNA87-YVP112M4,MTNA87-YVP132M4,MTNA87-YVP160M4,MTNA87-YVP71M4,MTNA87-YVP80M4,MTNA87-YVP90M4,MTNA87-YVPEJ100M4,MTNA87-YVPEJ112M4,MTNA87-YVPEJ132M4,MTNA87-YVPEJ160M4,MTNA87-YVPEJ71M4,MTNA87-YVPEJ80M4,MTNA87-YVPEJ90M4,WXSA87-WSS0.55KW,WXSA87-WSS0.75KW,WXSA87-WSS1.1KW,WXSA87-WSS1.5KW,WXSA87-WSS100M4,WXSA87-WSS112M4,WXSA87-WSS11KW,WXSA87-WSS132M4,WXSA87-WSS15KW,WXSA87-WSS160M4,WXSA87-WSS2.2KW,WXSA87-WSS3KW,WXSA87-WSS4KW,WXSA87-WSS5.5KW,WXSA87-WSS7.5KW,WXSA87-WSS71M4,WXSA87-WSS80M4,WXSA87-WSS90M4,WXSA87-WSSB100M4,WXSA87-WSSB112M4,WXSA87-WSSB132M4,WXSA87-WSSB160M4,WXSA87-WSSB71M4,WXSA87-WSSB80M4,WXSA87-WSSB90M4,WXSA87-WSSVP100M4,WXSA87-WSSVP112M4,WXSA87-WSSVP132M4,WXSA87-WSSVP160M4,WXSA87-WSSVP71M4,WXSA87-WSSVP80M4,WXSA87-WSSVP90M4,WXSA87-WSSVPB100M4,WXSA87-WSSVPB112M4,WXSA87-WSSVPB132M4,WXSA87-WSSVPB160M4,WXSA87-WSSVPB71M4,WXSA87-WSSVPB80M4,WXSA87-WSSVPB90M4。伺服電機連接減速機

SA87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.fssy828.com.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：S87減速機
